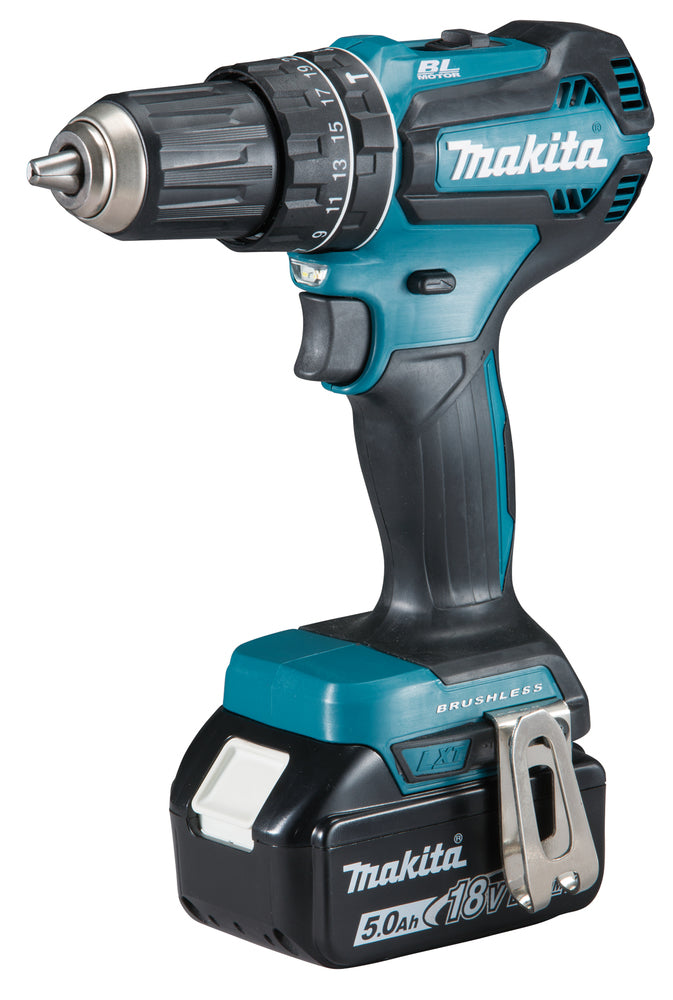

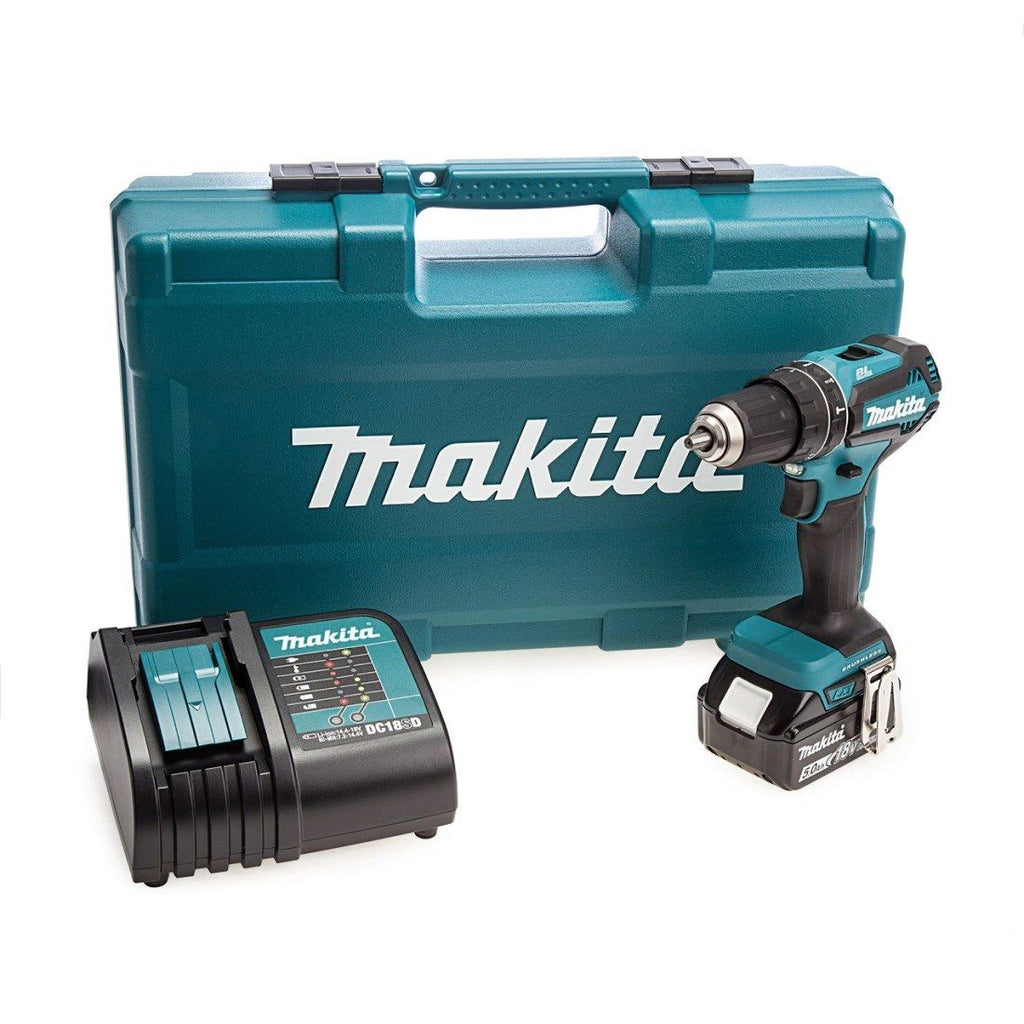

DHP485
18V • 50 Nm • 0 – 1 900 min-¹
A powerful, brushless general-use impact drill for
screwdriving and drilling
An efficient, brushless drill for screwdriving and
drilling with or without hammer action, two power
settings. Max. torque of 50 / 27 Nm. A versatile tool
for fitters, builders and maintenance staff. Integrated
LED light. Tool only, battery and charger not
included.

Technical specifications
Brushless Motor ✓
Voltage LXT ✓
Nominal Battery Voltage 18 V
Battery Chemistry (Ni-Cd / Ni-MH / Li-
ion) Li-ion
Battery protection ✓
No load speed 0 - 500 / 1900 min-¹
Max. fastening torque Hard/Soft 50 / 27 Nm
Clutch torque setting 21
Impacts per Minute (IPM) 0 - 7500 / 28 500
min-¹
Max. Drilling Diameter in Wood 38 mm
Max. Drilling Diameter in Masonry 13 mm
Max. Drilling Diameter in Concrete 13 mm
Max. Drilling Diameter in Steel 13 mm
Driving Shank 1/2"-20UNF "
Drill Chuck Capacity 1,5 - 13 mm
Sound Power Level (LWA) 93 dB(A

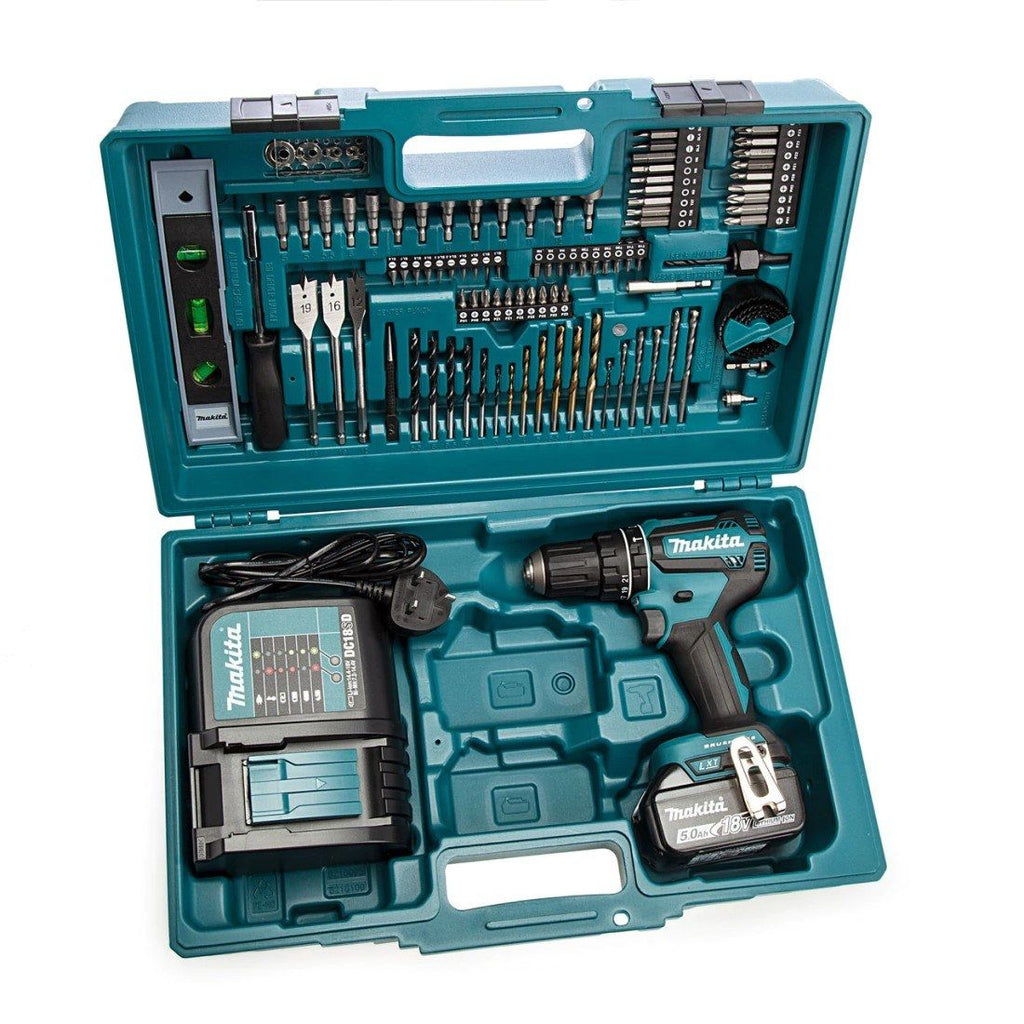

ACCESSORY CASE CONTENTS

• 13x Nutdrivers
• 4x Drill Stop
• 1x Hex key
• 2x Screw Holders
• 1x Centre Punch
• 1x Counter Sink
• 6x Brad Point Drills
• 6x HSS Drills
• 6x Masonry Drills
• 3x Flat Bits
• 5x Hole Saws
• 1x Bit Driver Handle
• 1x 8" Aluminium Spirit Level
• 30x 25mm Screwdriver Bits
• 20x 50mm Screwdriver Bits
• 1x 60mm Magnetic Bit Holder
