• Electronic Management System (EMS) protects the machine, extends service life and increases efficiency
• Brushless motor with higher efficiency and longer service life
• 18.0 V EC motor with overload protection and temperature monitoring
• LED battery capacity indicator
• Double-clamped swivel element prevents the saw blade from jamming when making angle cuts and thus the risk of kickback
• Spindle lock: for quick saw blade changes

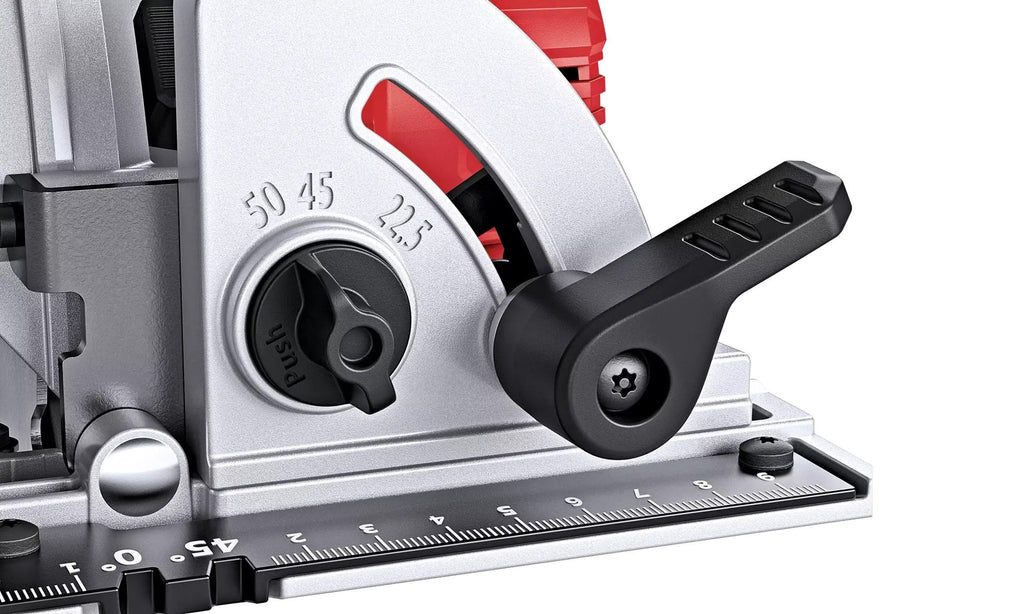

• Angle scale from 0° to 50°. With angle pre-adjustment of 22.5° / 45° and 50°. Easy to read and precisely adjustable thanks to handy clamping elements
• Swivel range from 0° to 50° for undercuts and scoring function for perfect visible edges
• Cutting depth adjustment by self-explanatory clamping lever, easy reading of the cutting depth
• According to the latest regulations without a riving knife for plunge cuts and without the time-consuming removal of the riving knife
• Chip collection bag for dust-reduced work, easy to empty, can be fixed without tools using a bayonet catch
• Connection option for external dust extraction with Ø 27 mm or step adapter
• Ideal for classic applications in dry construction and renovation. Eg for saw cuts through gypsum boards, concrete fiber boards, wood-based materials such as chipboard or OSB boards
• Flex Battery system: Operation with Allen 18.0 V battery packs

Technical specifications:
Battery voltage 18 V
Battery capacity 2.5 / 5.0 Ah
Idle speed 5000 rpm
Pivoting range 0-50°
Saw blade holder 20 mm
Cutting depth 0-62 mm
Cutting depth miter cut 0-38 mm
Cutting depth miter cut / with guide rail 0-32 mm
Saw blade Ø 165 mm
Angle preset 0°/22.5°/45°/50°
Dimension (L x W x H) 380 x 150 x 200 mm
Weight without battery 3.1 kg
