laserliner PocketPlane-Laser 3G kit includes tripod & accessories 036.703A
:
Regular price £274.99
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.

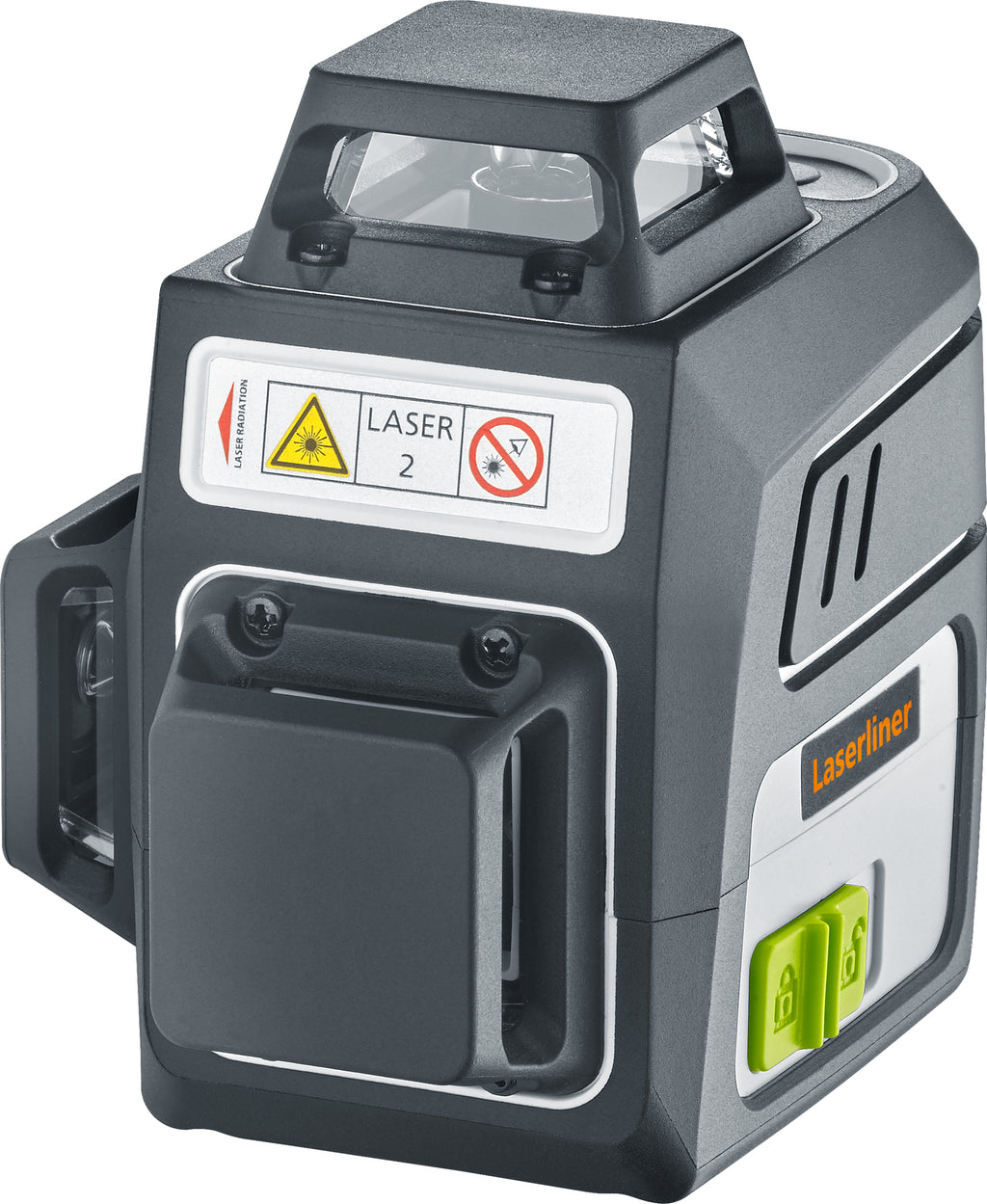

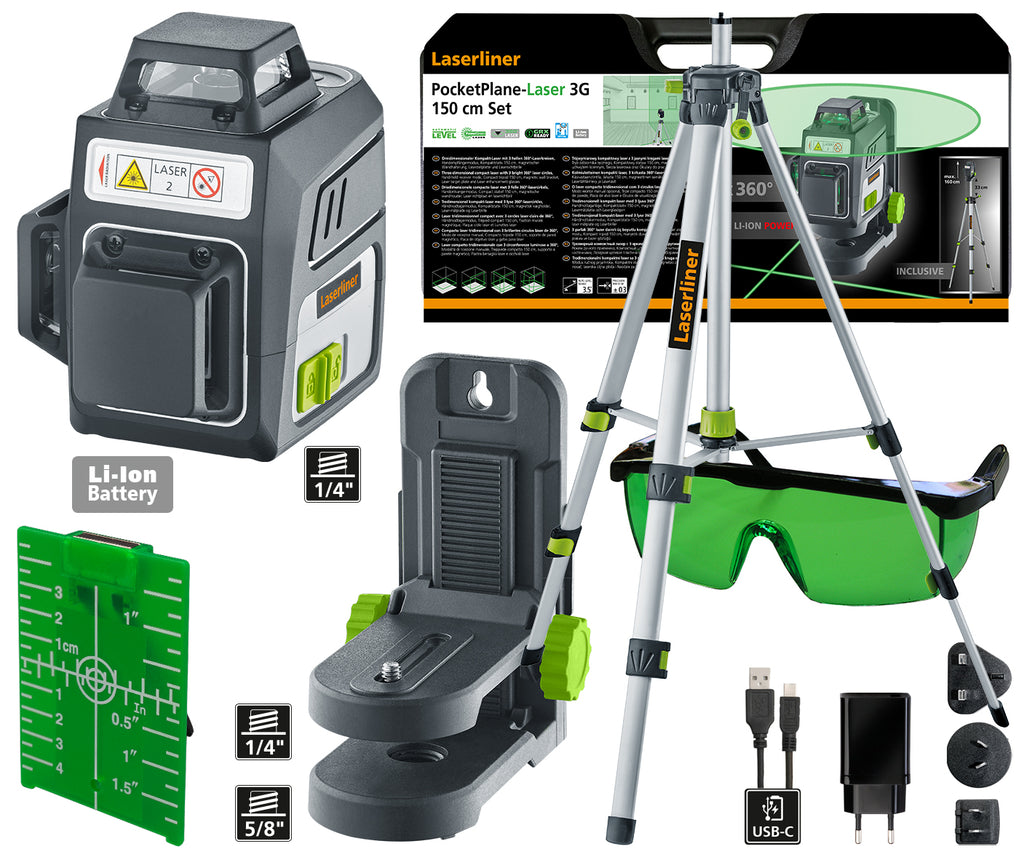

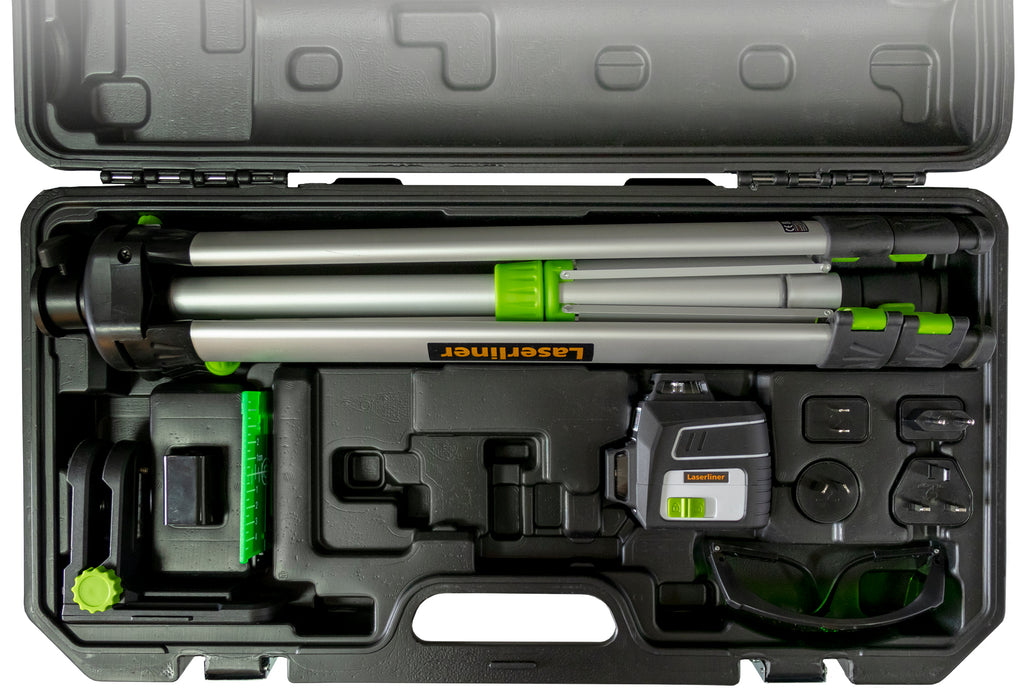

3D laser with one horizontal & two vertical green laser circles, kit includes tripod & range of accessories
PocketPlane-Laser 3G Set 150 cm - 036.703A
This three-dimensional, compact and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is all you need for demanding projects thanks to the comprehensive range of accessories. Multi-section telescopic tripod legs and a 30 cm crank on this compact tripod provide an extensive adjustment range.

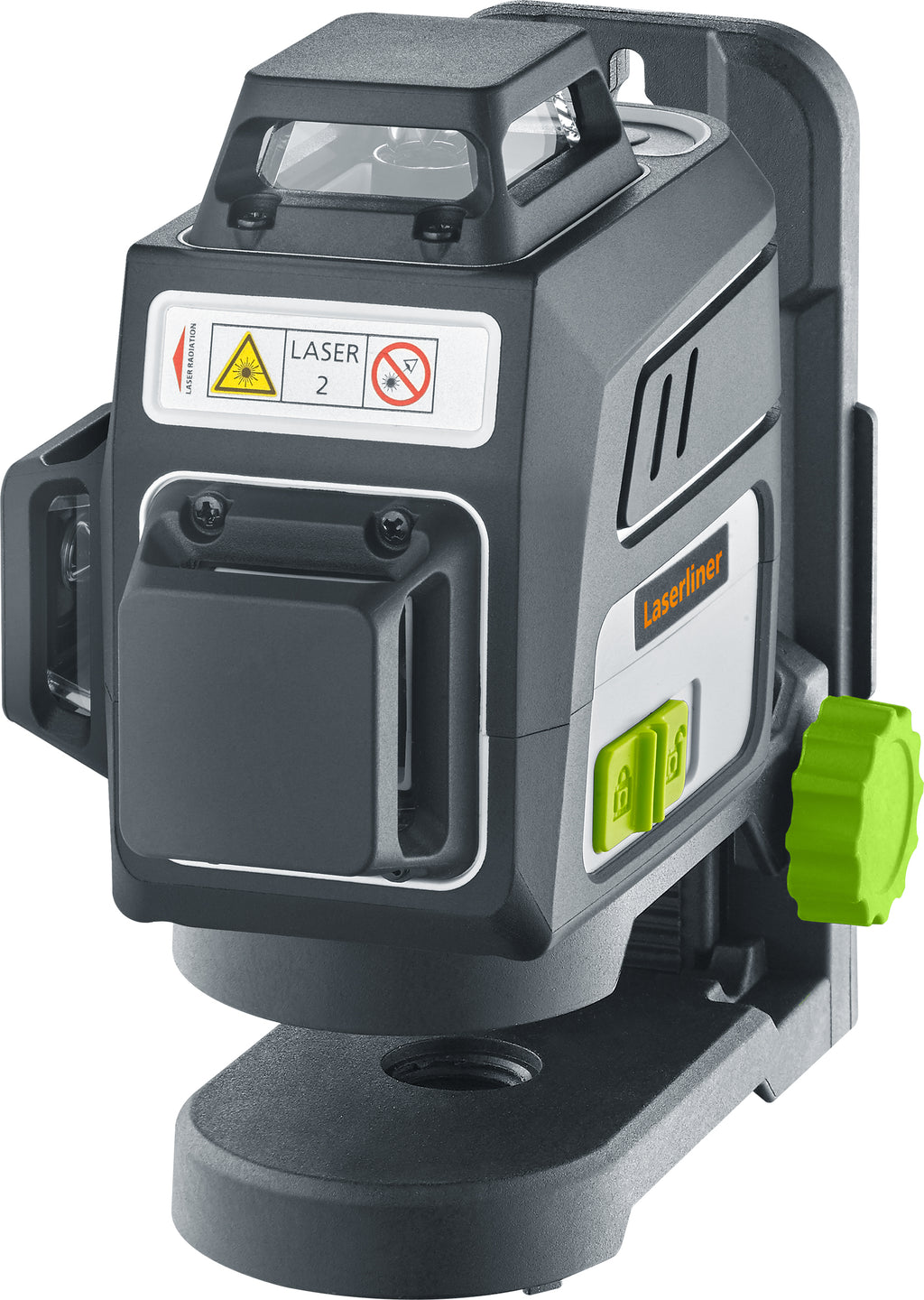

The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching to walls, metal items and tripods with a 1/4” or 5/8” thread.
- Three-dimensional laser with a horizontal and two vertical 360° laser circles
- Accurate horizontal and vertical alignment of objects
- Good visibility through green laser technology
- Easy alignment of slopes with manual tilt function
- Plumb function for synchronous working on floor and ceiling
Product code: 036.703A
Technical data
| OPERATING CONDITIONS | 0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level |
| OPERATING TIME | with 3 laser levels: approx. 9 hours |
| POWER SOURCE | Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh |
| LASER CLASS | 2 / < 1 mW (EN 60825-1:2014/AC:2017) |
| LASER WAVELENGTH | 515 nm |
| WORKING RANGE WITH HAND RECEIVER | (depends on how the technology affects the difference in brightness) 60 m |
| VISIBILITY (TYPICAL)* | 30 m |
| LEVELLING | automatic |
| ACCURACY | ± 0.3 mm / m |
| SELF-LEVELLING RANGE | ± 3.5° (horizontal) |
| WEIGHT | 388 g (incl. battery pack) |
| DIMENSIONS (W X H X D) | 104 mm x 97 mm x 76 mm |
| STORAGE CONDITIONS | -10°C … 70°C, max. humidity 80% rH |
Technology key
-
360° Laser -
6 x Brighter High Visibility -
Automatic alignment -
Green laser -
GRX ready -
Hard Case -
Laser Class 2 -
Li-ion battery -
Tripod connection 1/4" -
Tripod connection 5/8" -
USB connection
